Vibrating Screens

Vibrating Screens
Vibrating Screens
Product Code : 03
Product Description

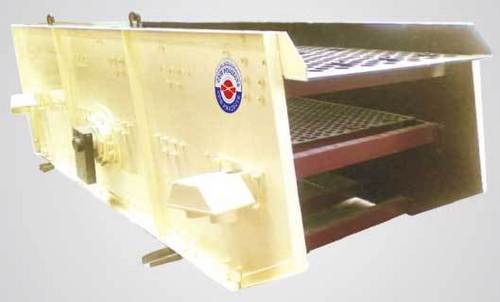

The company is a known Vibrating Screens Manufacturer, Exporter, and Supplier in India. The range of our Vibrating Screens comprises of Wire Mesh Type Vibrating Screen and Plate Perforation Vibrating Screen. The basic purpose of the Vibrating Screens is segregation of different product sizes to suit the particular requirement. Vibrating Screens are most preferred due to the ease of operation and low maintenance cost. The main screen basket of the Vibrating Screens is rectangular in shape. The dimensions of the Vibrating Screens depend upon the required capacity, lump size with its percentages.

These Vibrating Screens can either be with a single eccentric shaft on the ends of which two equal unbalanced weights are mounted or can be provided with two unbalanced motors. The screen decks are either of perforated steel plates with round or square holes or of spring steel wire mesh system having bolt tightening arrangement on the main plate of the basket. The basket is normally positioned on 8 or 12 Nos. of heavy duty springs depending on the size of the Vibrating Screens. These Vibrating Screens are mounted on a steel frame, which is designed to give an inclination of about 15-18 Degree to the basket.

Working
The material fed on the top deck begins to roll down and particles smaller than the perforation pass below, while the bigger ones are retained on the deck and roll down in the chute provided at the end. When the Vibrating Screen is of multiple decks, the particles segregated from the deck above fall on the lower decks and the process of segregation is repeated. Since the lower decks will have smaller perforation as compared to the deck above, the material finally gets segregated into various sizes.

Technical Specifications:

Model
Decks
Area
Max. Feed Size (mm)
Capacity - TPH
Power - KW
CHM - 2D - 1224
II
2.88
100
40 - 90
3.70
CHM - 3D - 1224
III
2.88
100
40 - 90
5.50
CHM - 2D - 1230
II
3.66
120
50 - 110
5.50
CHM - 3D - 1230
III
3.66
120
50 - 110
7.50
CHM - 2D - 1536
II
5.3
120
60 - 120
7.50
CHM - 3D - 1536
III
5.3
120
60 - 120
11.10
CHM - 2D - 1548
II
6.9
120
70 - 150
11.10
CHM - 3D - 1548
III
6.9
120
70 - 150
15.00
CHM - 2D - 1854
II
9.15
120
90 - 225
15.00
CHM - 3D - 1854
III
9.15
120
90 - 225
18.75
CHM - 2D - 1860
II
10.25
120
125 - 300
18.75
CHM - 3D - 1860
III
10.25
120
125 - 300
22.50
CHM - 2D - 2167
II
13.45
120
150 - 350
30.00
CHM - 3D - 2167
III
13.45
120
150 - 350
37.00
